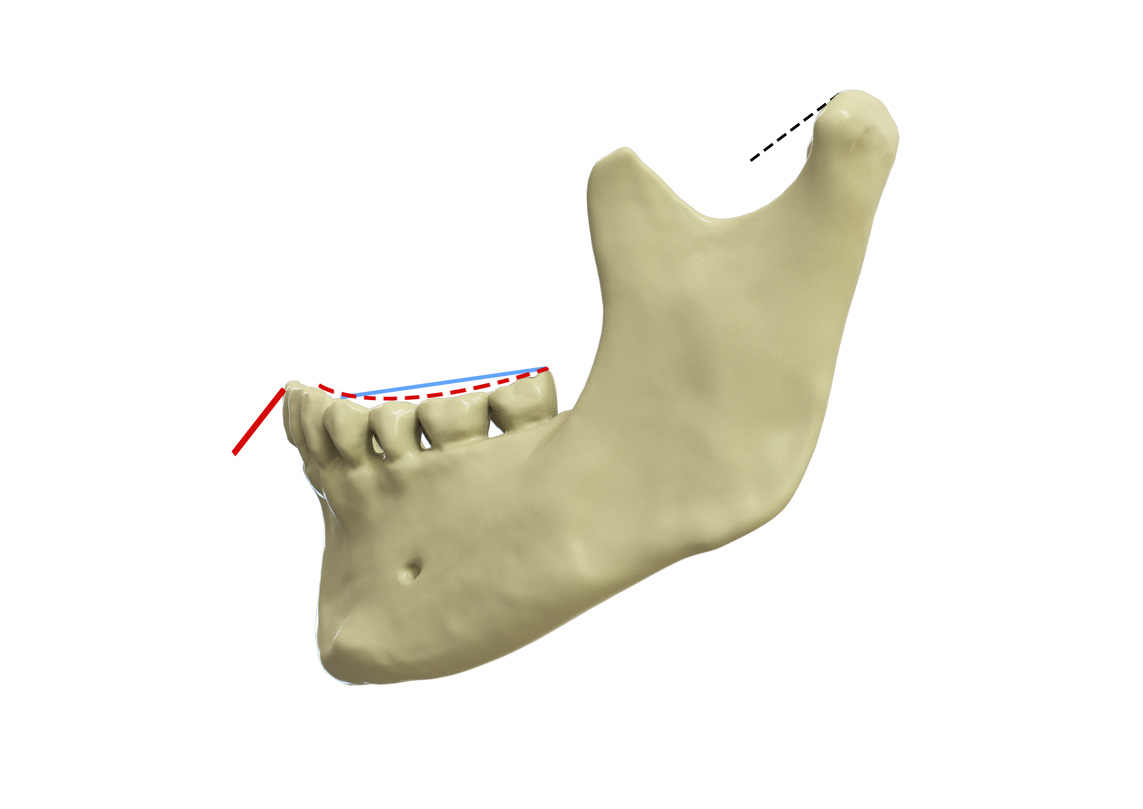

Balanced occlusion has been proposed to promote the stability and retention of complete dentures.1 The objective of this concept is to keep the occlusal contacts not only in centric occlusion but through the functional ranges of mandibular movements. According to Rudolph L. Hanau, this dynamic relation of denture occlusion can be described with the interrelationship of the following five factors known as Hanau's quint: condylar guidance (CG), incisal guidance (IG), orientation of occlusal plane (OP), compensating curve (CC), and cuspal incline (CI) (Figure 1).1-3
The CG is the measure of an angle formed by the condylar pathway down the articular eminence of the mandibular fossa of the temporal bone and the Frankfort horizontal plane.4-6 The angle of the condylar pathway is usually recorded with the mandible guided approximately 5 mm in protrusion, and is transferred to an articulator to program the mechanical equivalents of condylar elements.
The IG is determined by the interincisal relationship of maxillary and mandibular anterior teeth.7,8 This functional relation of the anterior teeth can vary with the degree of vertical and horizontal overlaps, and is usually determined with wax trial dentures placed in the mouth. For esthetics, the vertical overlap is increased to display the incisors and mimic the relation of natural dentition. The increased IG, however, may alter the masticatory muscle activities and restrict the functional range of mandibular movements.8

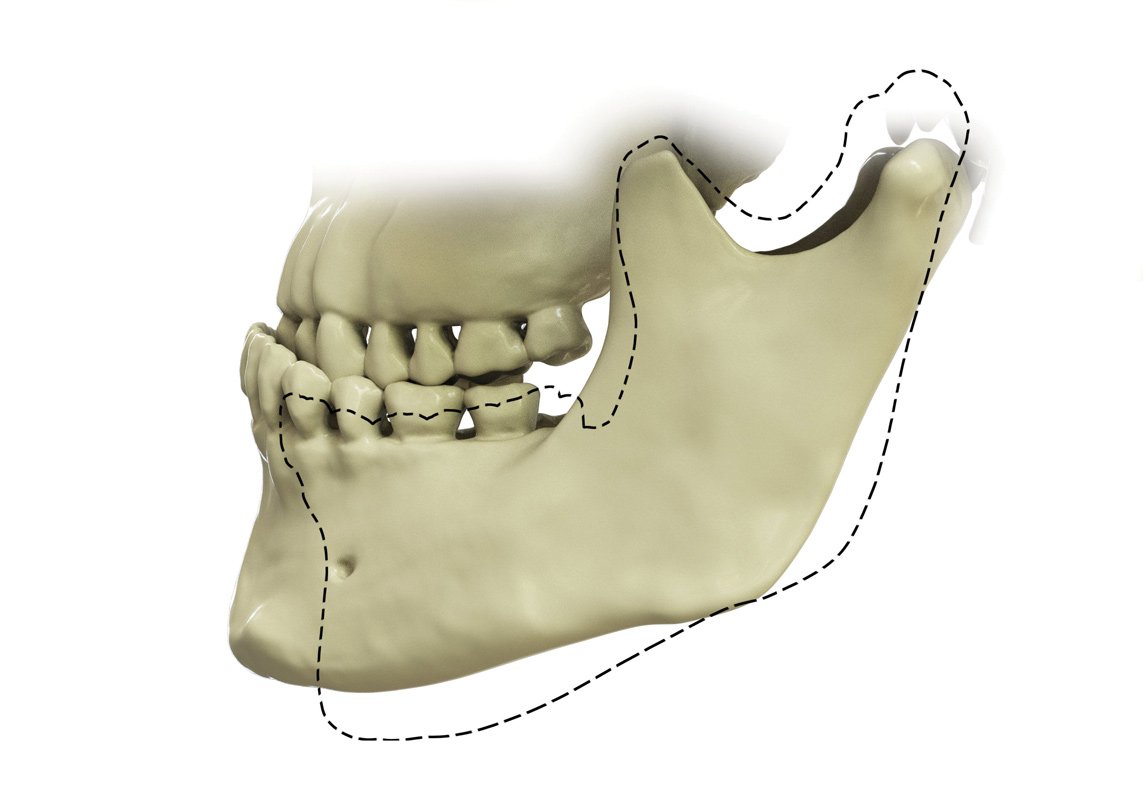

The OP is an imaginary plane relating to the heights of anterior and posterior teeth.9 This plane is usually aligned to the ala-tragus line, interarch relation of the ridge, retromolar pad, lateral border of the tongue, and commissure of the mouth.10 This plane may display a parallelism to the ridge of the denture foundation or an inclination toward the anterior or posterior direction. An ideal OP may display a relatively flat and parallel surface to the ridge of edentulous arch.11 The flat surface of the OP, however, may display a mismatch when the condyle glides down the articular eminence in protrusion. The posterior teeth disclude from occlusion, demonstrating an interocclusal gap between the maxillary and mandibular teeth and creating the "Christensen phenomenon" (Figure 2).2,3
The commercially available artificial teeth demonstrate a wide range of CIs with different occlusal morphologies.11,12 These teeth are, in general, classified into nonanatomic, semianatomic, and anatomic depending on the cuspal morphology. The nonanatomic teeth do not display a distinct cuspal morphology, and a higher CI is found in the anatomic teeth. However, the value of the CI is altered when the teeth are arranged on a compensating curve (CC) created in the OP.13 For example, a 30-degree artificial tooth can display either 20- or 40-degree CIs when the tooth is set on a 10-degree curve as a reference to the OP.
This article describes a formula introduced to quantify a balanced occlusion within the context of Hanau's quint and discusses the limitations of the formula because of the individual variability of mandibular movements. A MEDLINE/PubMed search for keywords (Hanau's quint, condylar guidance, incisal guidance, occlusal plane, compensating curve, cuspal incline) was supplemented with a hand search to identify relevant peer-reviewed articles published in English up to 2019.
Articulation in Centric Relation

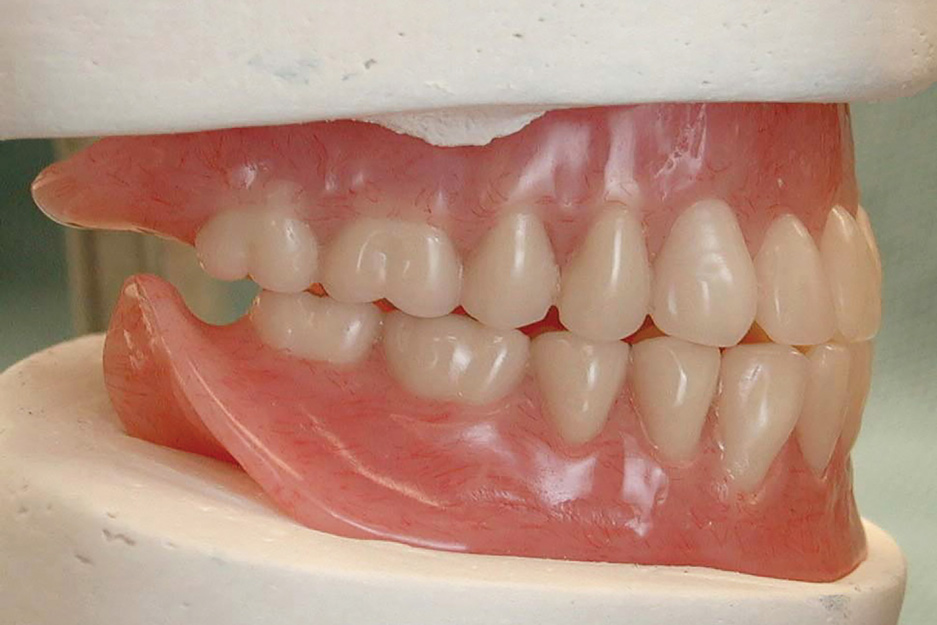

The maxillary and mandibular teeth are arranged to support the lower facial height and match with the centric relation of the condyle.14,15 When the teeth are in occlusion, the condyle should ideally be in the most anterior and superior position of the articular eminence (Figure 3 and Figure 4). This centric position of the condyle should also be in harmony with the neuromuscular complex of the masticatory system. This position is reproducible and recordable, and is well received as a treatment position for the fabrication of complete dentures.15
The occlusal morphology of artificial teeth should demonstrate spillways for an efficient masticatory function.11 The artificial teeth are placed to optimize the force direction under occlusal functions and enhance the esthetics of a lower facial profile. The posterior teeth are arranged to provide centric stops to keep the occlusal vertical dimension and direct the occlusal forces in vertical direction.12 The anterior teeth should not occlude and demonstrate a freedom in centric relation of the mandible.15,16 The teeth can be arranged on a flat or curved OP to match with the arc of mandibular closure.
The anatomic teeth demonstrate a distinct cuspal morphology for the establishment of cusp-to-fossa relations.12,17 An occlusal interference may occur in centric relation of the mandible when the maxillary cast is mounted on an articulator by means of an arbitrary facebow or earpiece bow.18,19 According to Weinberg, the occlusal error is minimal when the arbitrary transverse horizontal axis is located within a 5-mm radius from the true hinge axis.20,21 However, the occlusal error can be pronounced when the occlusal vertical dimension is altered on the articulator. Because of the close proximity to the transverse horizontal axis, the posterior teeth can display a greater degree of occlusal error. The anterior teeth are influenced far less than posterior teeth when the arbitrary location displays a discrepancy from the true axis of rotation.18
The casts should be mounted on an articulator that can mimic the opening and closing motion of the mandible and allow the transfer of the facebow record.20,21 The vertical condylar axis should be long enough to position the OP in reference to the hinge axis. When mounted on an articulator displaying a short condylar axis, the arc of closure of the mandibular cast will be more acute than the arc of mandibular closure. A deflective occlusal contact can occur on the CI of the posterior teeth, demonstrating an open bite in the anterior region.
The centric relation of the mandible may not be a point but an area.22,23 The condyle appears to suspend in a relaxed or habitual position, and is further braced against the medial aspect of the mandibular fossa when the mandible is guided.24 A controversy may occur with this biomechanical aspect of condylar posture. The area of centric is described as either "long centric" or "freedom in centric."22,23 In addition, the masticatory cycle demonstrates a lateral component at the terminal phase of mandibular closure, blunting the tip of the teardrop shape of the masticatory cycle. According to Suit et al, the lateral slide can range up to 1 mm.25
Articulation in Protrusion
The posterior teeth disclude when the mandible is advanced in the frontal direction.2,3 Having set at 0 degrees both the CG and IG, the "Christensen phenomenon" of posterior disclusion does not occur. No interocclusal gap is observed when the OP is flat and parallel to the Frankfort horizontal plane. According to a previous study, the average CG of edentulous patients is 36 degrees with a range of 10 to 62 degrees.4 The individual variation was as high as 25 degrees between the right and left sides of the temporomandibular joint. A symmetric CG was found only in 12.5% of the subjects, and dissimilarities greater than 10 degrees were observed in 21.4%.

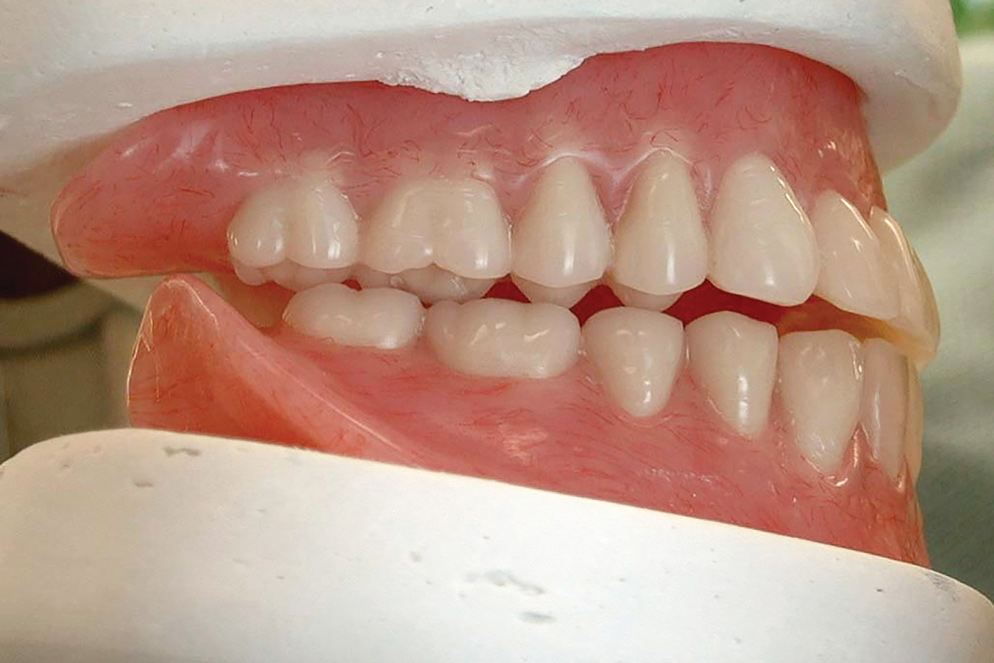

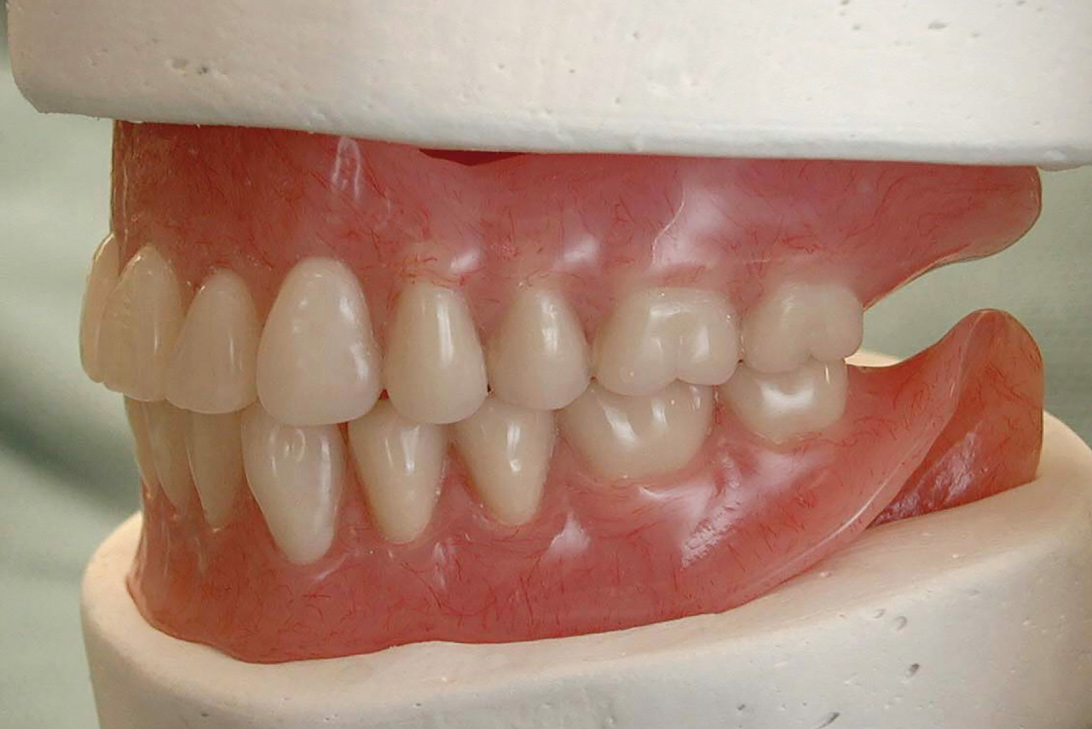

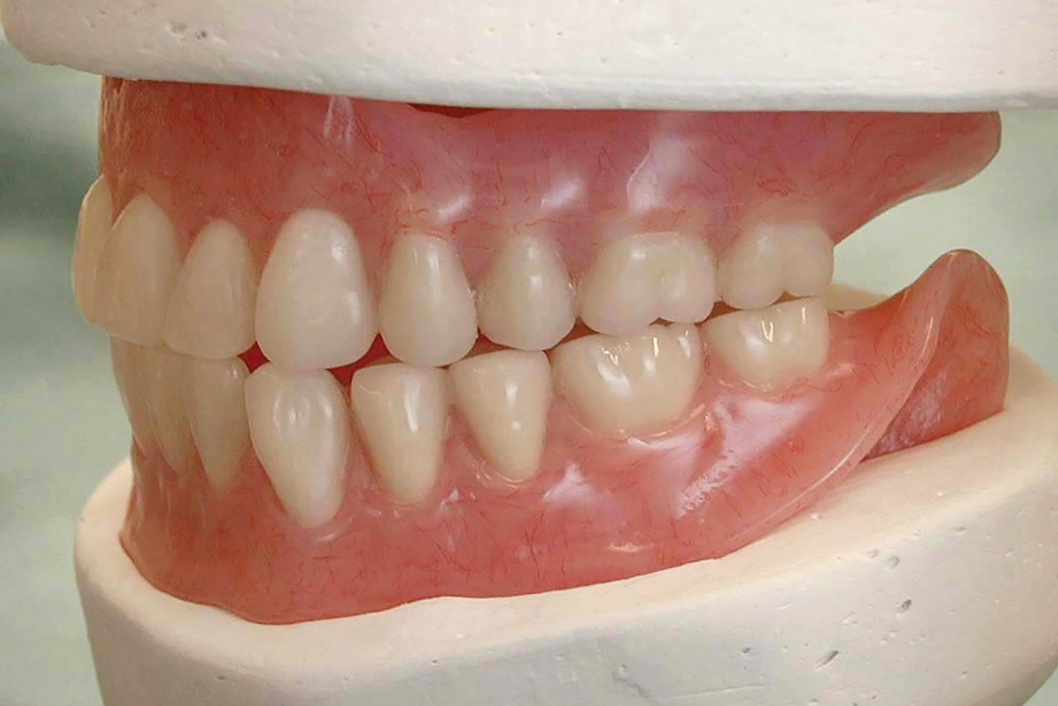

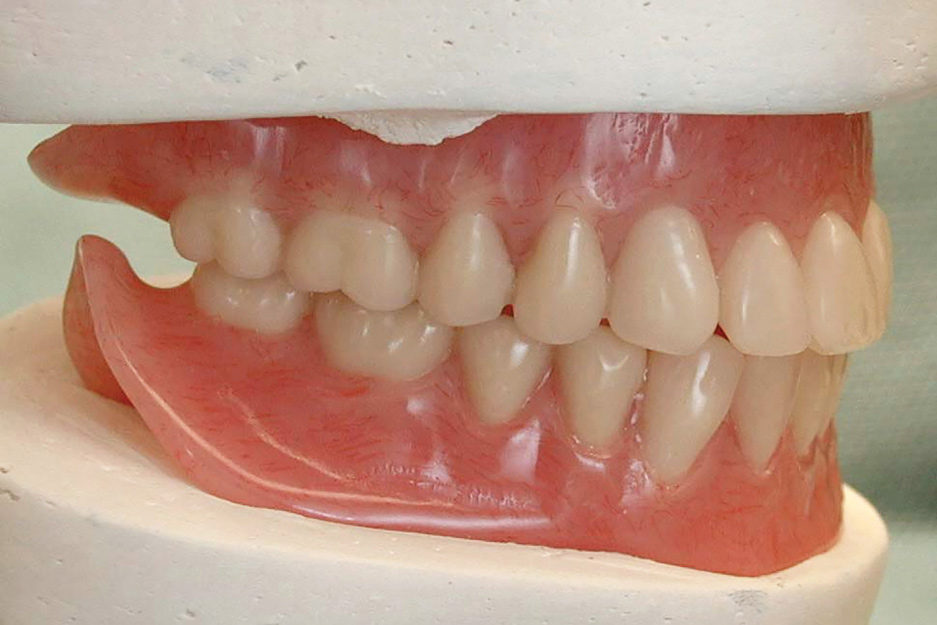

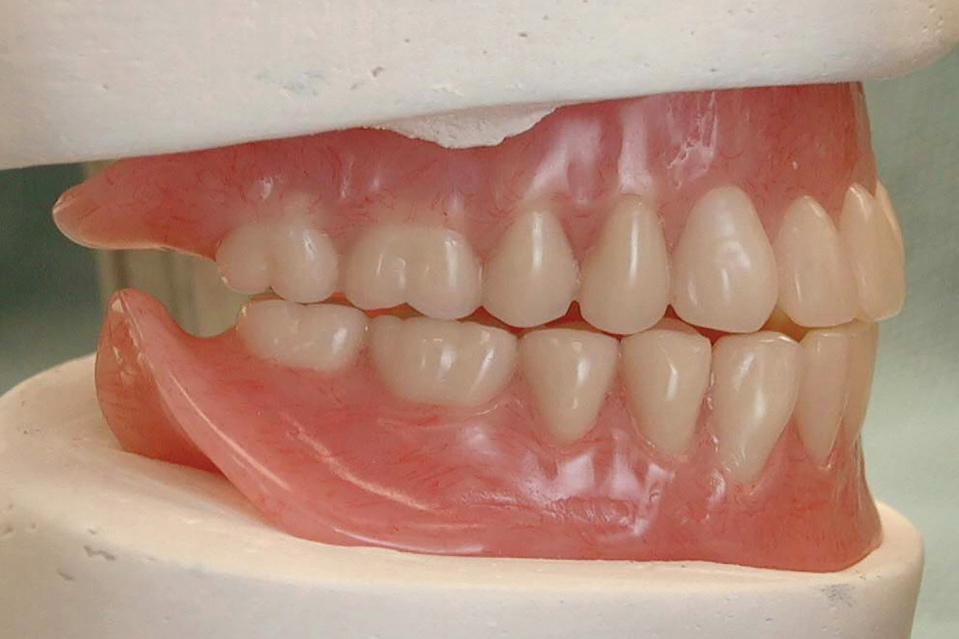

The posterior disclusion may not occur when the OP is inclined or incorporates a CC to raise the occlusal surface of posterior teeth (Figure 5 and Figure 6).2,3,13 Alternatively, the posterior interocclusal gap called the "Christensen distance" can be closed with a cuspal morphology rising above the OP. The balance is kept with the angulation of the posterior teeth described as the inclination of the OP, CC, CI, or a combination of these. The greater the CG, the more acute should the inclination of the OP, CC, or CI be for balance in protrusion.
The articulator should be equipped with adjustable condylar elements to program the CG. The right and left condylar elements should be independent from each other to match with the asymmetric condylar pathways as reported in a previous study.4 The condylar pathway is not linear; it is arcuate because of the convexity of the incline of the articular eminence.20,21 Thus, the value of the CG can be inconsistent when programming the condylar elements based on a static interocclusal record. The graphic method will indicate the entire pathway of the condylar movement and can produce the curvilinear pattern of the CG.26 However, many commercially available semi-adjustable articulators are limited in reproducing the graphic record of the condylar pathway.
The condylar pathway is not altered by the interincisal relations of anterior teeth.17,26 The value of the CG remains constant even when the IG is altered for phonetics and esthetics. However, the mandibular movement is influenced by the altered IG. When the IG becomes acute to meet the patient's demand, the angulation of the OP, CC, CI, or a combination of these should be greater. In Swenson's formula, the sum of the inclination of the OP, CC, and CI is described as the CI when quantifying the degree of the inclination, as follows: CI = IG + d (CG - IG) where, d is the fraction of the distance from the incisal point to each cusp in question (Figure 7).2,3

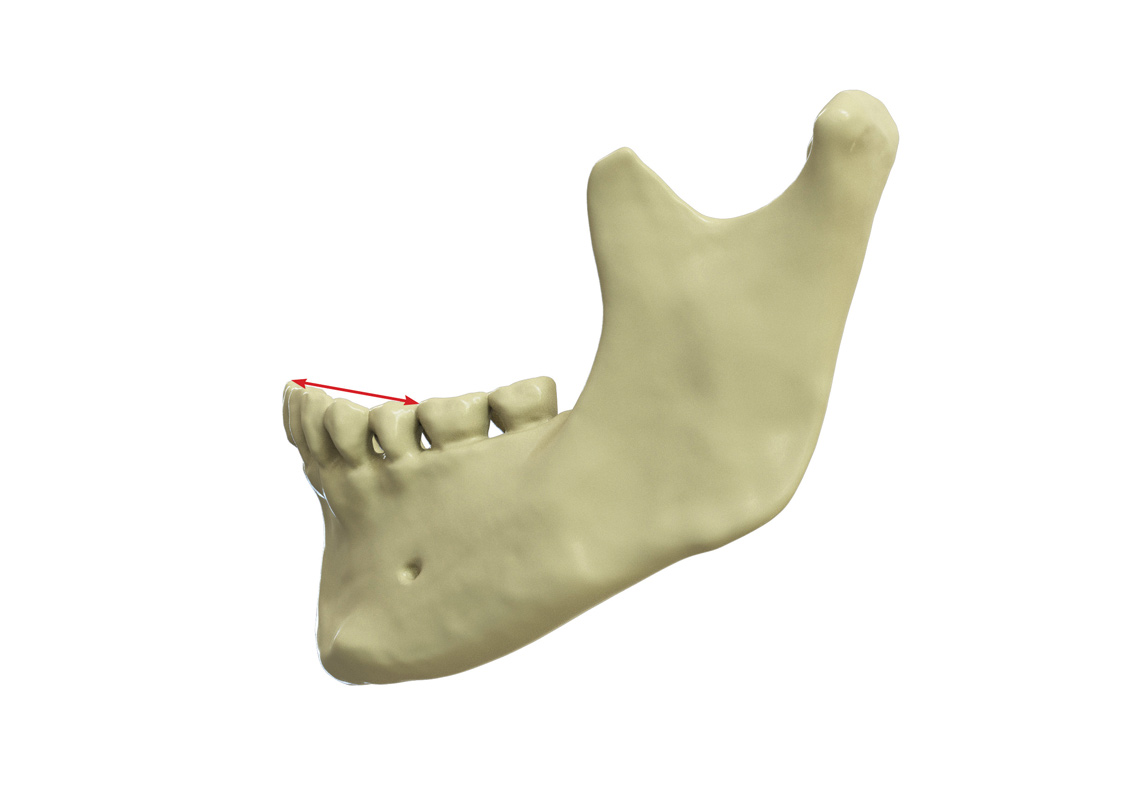

According to Swenson's formula, the location of tooth d is significant in producing the angulation of the CI. The more anterior the location of tooth, the smaller the value of d. When the IG is greater than the CG, premolars will demonstrate higher CI than molars. However, the last molar will display the greatest CI when the IG is lower than the CG.
Articulation in Lateral Excursion

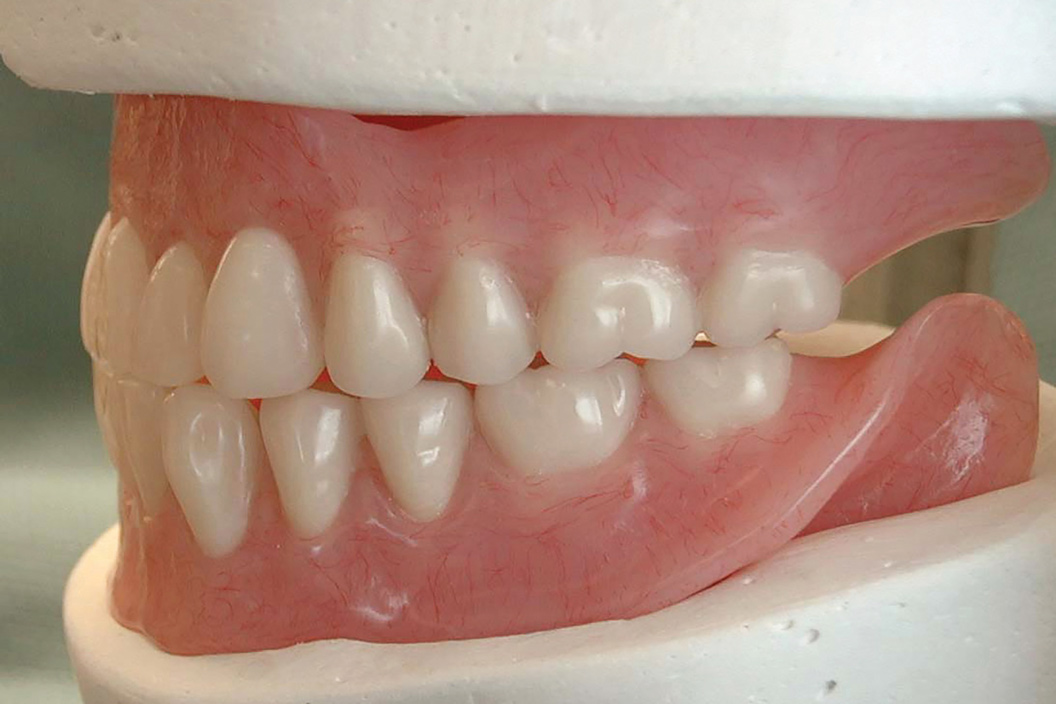

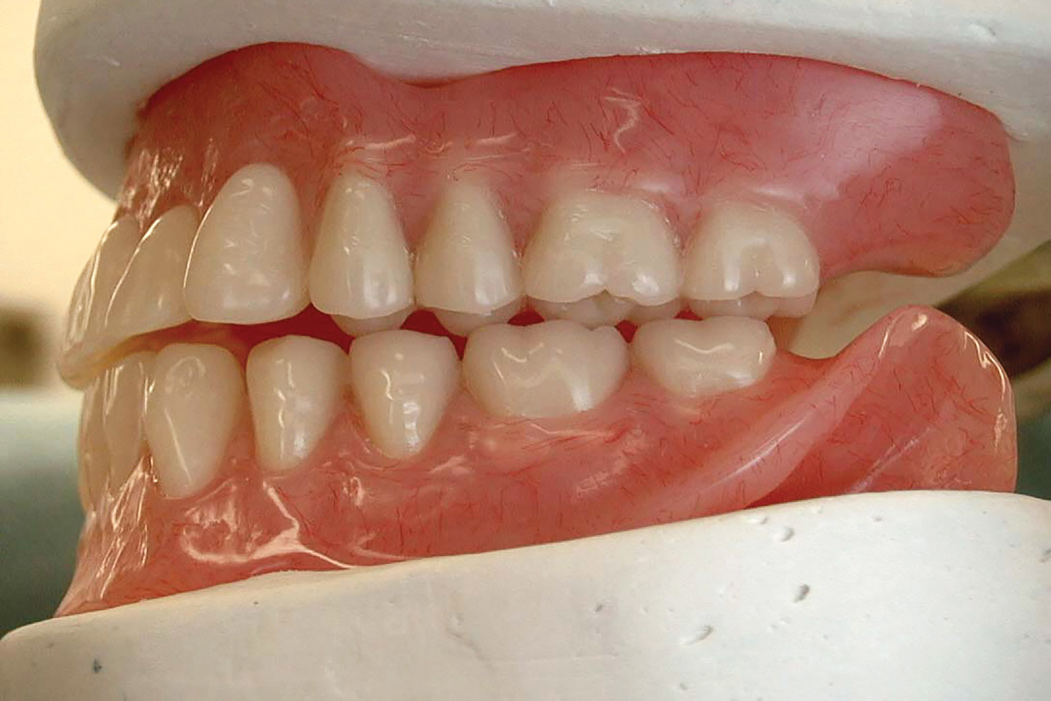

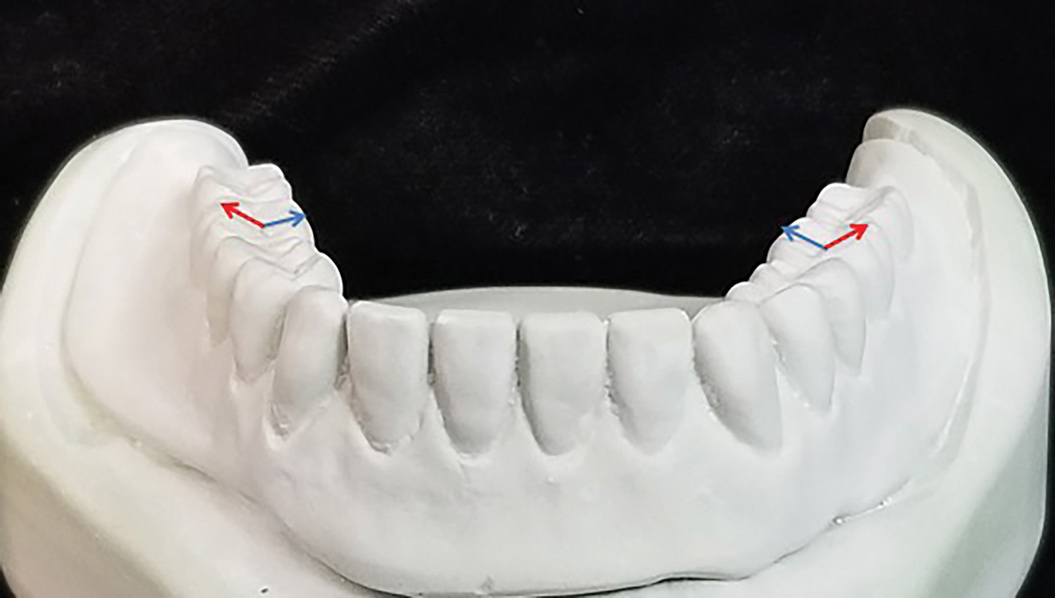

The working condyle rotates along the vertical axis of the condyle, while the balancing condyle is pulled down in the articular eminence.26,27 The occlusal morphology of the posterior teeth is not influenced by the rotational movement of the working condyle. However, the posterior disclusion occurs on the balancing side because of the downward movement of the balancing condyle. To keep the balance, an incline should be developed to match with the asymmetric cross-arch rotational movement of the mandible (Figure 8 through Figure 12).13
The working incline (the sum of inclination of the OP, CC, and CI) is influenced by IG.28 When the IG is set at 0 degrees, the working incline displays a flat surface. The incline is increased when the interincisal relation becomes more acute. Interestingly, the increase of the working incline is not directly functional to the increase of the IG because of the individual rotational movements of working condyle.28 The condyle does not demonstrate a pure rotational movement. The vertical axis of the condyle is displaced in lateral direction with anterior, posterior, superior, inferior, or a combination of these movements.20,21
The balancing condyle makes a circular motion in the medial direction when the working condyle rotates.26-28 This cross-arch rotational movement of the mandible may occur in two phases: immediate mandibular lateral translation (IT) and progressive mandibular lateral translation (PT). Although controversial, the working condyle cannot translate in the lateral direction unless the IT does not occur on the balancing side of condyle. The bodily translation of the mandible is called the Bennett movement, and the Bennett angle is formed as the balancing condyle progresses further to continue the circular motion against the medial wall of the articular eminence.
The arc of a circle becomes more acute when the radius of the circle is decreased.29 The intercondylar distance is fixed and cannot be altered because of the unification of working and balancing condyles by means of the mandibular body. However, the lateral translation of the mandible displaces the center of rotation located in the working condyle and consequently alters the positional relation of the balancing condyle, causing an effect of a decrease in the intercondylar distance as reference to the original center of the rotation. In fact, the gothic arch tracing made by a graphic record is more lateral when combined by a smaller intercondylar distance.29 This effect is observed when a Hanau H2 articulator is simulated to mimic the lateral rotational movement of the mandible. The working condylar ball remains in the condylar slot but the intercondylar pin slides laterally through the ball.20,21
Discussion
The balance is described with the interrelationship of Hanau's quint.1 The CG is fixed and is presented by the patient. The IG is mostly determined by the dentist to match with the patient's profile. The conundrum is the location and inclination of the teeth located between the posterior determinant of the CG and the anterior determinant of the IG.
The formula was introduced to quantify the inclination of posterior teeth and balance the occlusion in protrusion.2,3 In that formula, the CI represents a sum of the angulation of the OP, CC, and CI. For example, a 30-degree CI can be produced when a 10-degree cusp tooth is combined by 10-degree orientation of the OP and 10-degree CC. The CIs are uniform through the posterior teeth when the IG is set to be equal to the CG.20,21 However, the inclination will change gradually along the OP when the IG is set to be higher or lower than the CG. The more anterior the location of tooth, the greater the influence of the IG. Thus, premolars will display a greater inclination than molars when the IG is more acute than the CG.
The value of d is not constant and is a weak link in Swenson's formula. It indicates a relative location of a tooth from the IG as reference to the two end-controlling factors.2,3 When considering the individual differences of craniofacial anatomy, the d is a variable and is unknown until the location is determined as reference to the IG. Alternatively, the d can be quantified when the CI is determined in a complete denture demonstrating a balanced occlusion. According to Christensen, the average value of d can be approximated as follows: 0.5 for the third molar, 0.4 for the second molar, 0.3 for the first molar, and 0.2 for premolars.2,3 This formula appears to produce good estimates for protrusive balance.28
An excessive inclination of the OP may cause harm with regard to force direction and compromise the functions and esthetics.30 The OP is somewhat presented by the patient according to anatomic landmarks and functional relations with other masticatory structures. A curve can be incorporated into the OP to have an effect of inclination.31 This approach follows the geometric concept of a sphere crossing through the axis of the condyle and incisal point. This method, conceived based on anthromorphometric observation, is useful for designing a curved OP for balance. However, the optimal degree of CC is yet to be determined for balanced occlusion.
A cuspal morphology may rise above the OP to fill the interocclusal gap created by the posterior disclusion. According to Christensen, a cusp may demonstrate a height to compensate for the insufficient inclination of the OP.2,3In fact, the balance refers to the inclination of a cusp, and does not necessarily indicate the height. CI describes the angulation of posterior teeth, and cusp height determines the range of tooth contact occurring during the excursive movements of the mandible.20,21 The CI starts at the occlusal contact in centric occlusion and serves as a guide for the opposing cusp to glide without breaking the balance. The taller the height of a cusp, the greater the range of the balance. However, the functional range of mandibular movements rarely reaches the scope of the border movements.25
The lateral balance is important because of a high frequency of lateral movements of the mandible. The teeth are usually arranged to display a curve in the medio-lateral direction. This mediolateral CC usually involves more apical setting of lingual cusps than buccal cusps in the mandible. When the relative heights of those cusps are switched, a reverse CC is produced. In essence, the CC is set to raise the balancing inclination and lower the working inclination. Interestingly, the working incline is decreased as a function of increasing the balancing incline (Figure 8). This approach enables a sphere to cross the OP laterally as indicated by the CI of the posterior teeth.
The semiadustable articulators have limitations in reproducing the CG. The widely used Hanau H2 articulator is incapable of distinguishing the "Fischer angle"-the difference between the horizontal CG and the lateral CG.21,26 The former indicates the downward condylar pathway observed during the protrusive movement, and the latter describes the downward pathway of the balancing condyle that occurred during the lateral movement. However, the occlusal error resulting from the incapacity of accepting the Fischer angle may not be clinically significant.26
Some articulators are neither precise in reproducing the occlusal record nor capable of receiving lateral interocclusal records.32,33 A significant difference was noted when the Hanau formula was used to set the lateral inclination of the condylar pathway. These articulators are not designed to adjust the intercondylar distance and individual motions of a working condyle. According to Weinberg, the occlusal error can be significant when the errors are cumulative.21 However, the occlusal error of a complete denture resulting from using a semiadustable articulator can be minimal when combined by <0.2-mm IT, <5-degree difference in PT, <5-mm difference in intercondylar distance, <5-degree difference in the CG, and <5-degree individual movements of the working condyle.27
The positive occlusal error can be adjusted intraorally. The maxillary cast should be mounted by means of a facebow record, although the arbitrary transverse horizontal axis may not locate within the 5-mm zone from the true transverse horizontal axis.20,33 The facebow transfer procedure should also include an adequate location of the anterior reference point.34 The intercondylar distance can be measured using the facebow.29 When the distance is greater than 110 mm, the lateral condylar adjustment is set near 0 degrees during the occlusal adjustment for lateral balance. Significant variables would be the Bennett movement and the Bennett angle as indicated by the IT and the PT.35 The combination of these variables limits the application of Swenson's formula for determining the working and balancing inclinations.28
Centric relation is a key for the success of complete dentures.15 This position is a starting point for balanced occlusion. The cuspal morphology should not restrict the masticatory cycle of the mandibular movement.25 The occlusal adjustment should be selective to display a freedom in centric relation, keep the occlusal vertical dimension, and balance the occlusion within the functional range of mandibular movements. When a balancing interference is noted, the maxillary palatal cusp is chosen as a centric stop to embrace the concept of lingual contact occlusion.12,36 However, the balance is not warranted until the functional interrelationship of Hanau's quint is fully commanded.
Conclusion
The CI can be quantified using Swenson's formula when balancing the occlusion. It was found to approximate the protrusive incline when the distance of a tooth in question is determined in reference to the IG and CG. However, the quantification of working and balancing inclines should consider the individual variability of condylar pathways and the limitations of articulators commonly used to fabricate complete dentures. An occlusal error may occur requiring an intraoral adjustment. The centric relation of the mandible is critical as a starting point of balancing the occlusion. The occlusal adjustment should encompass the basic principles of complete denture design, including a freedom in centric relation of the mandible and maintaining the occlusal vertical dimension.
