New materials and products continue to move the dental industry into unfamiliar territory. In order to be truly efficient and obtain the most from both the product and the dental team’s skills, the team needs to have a goal based on an understanding of the desired outcome.
Technicians may have needed 1.5 mm to hide a PFM framework in the past, but a more esthetic material does not need to be hidden in the same way. New materials offer opportunities for laboratories. Technicians now must find fundamentals and principles to navigate the use of these new materials and technologies.
Case Report
A young male patient presented with a request to improve the overall esthetics of his anterior teeth. The patient’s posterior tooth color and shape were deemed easy to restore to (Figure 1). No major space changes were required for the anterior arch, so the treatment team decided to proceed with a plan of 4 veneers on teeth Nos. 7 through 10.
The request from the dentist was: “Please fabricate e.max veneers, very esthetic, lengthen 7 and 10, keep thickness to 0.6 mm.” When the patient was prepped (Figure 2), heavy discoloration of tooth No. 8 was discovered. Because of the need to color mask the underlying dark color of prepared tooth No. 8 and the need for the veneers to be very thin, the laboratory technician decided that IPS e.max® MT Press (Ivoclar Vivadent, ivoclarvivadent.com) would be a perfect fit.
Because IPS e.max MT is similar to the dentin layer of the tooth, in order to match natural dentition the technician needs only to come up with the difference of the enamel layer. Variables exist in the process, but typically only the last 0.5 mm to 1.0 mm of space is necessary to achieve the desired outcome. The substructure can be made thicker, thereby adding strength while saving time by not creating those sublayers in porcelain. In addition, the dentist can be less aggressive with prepping.

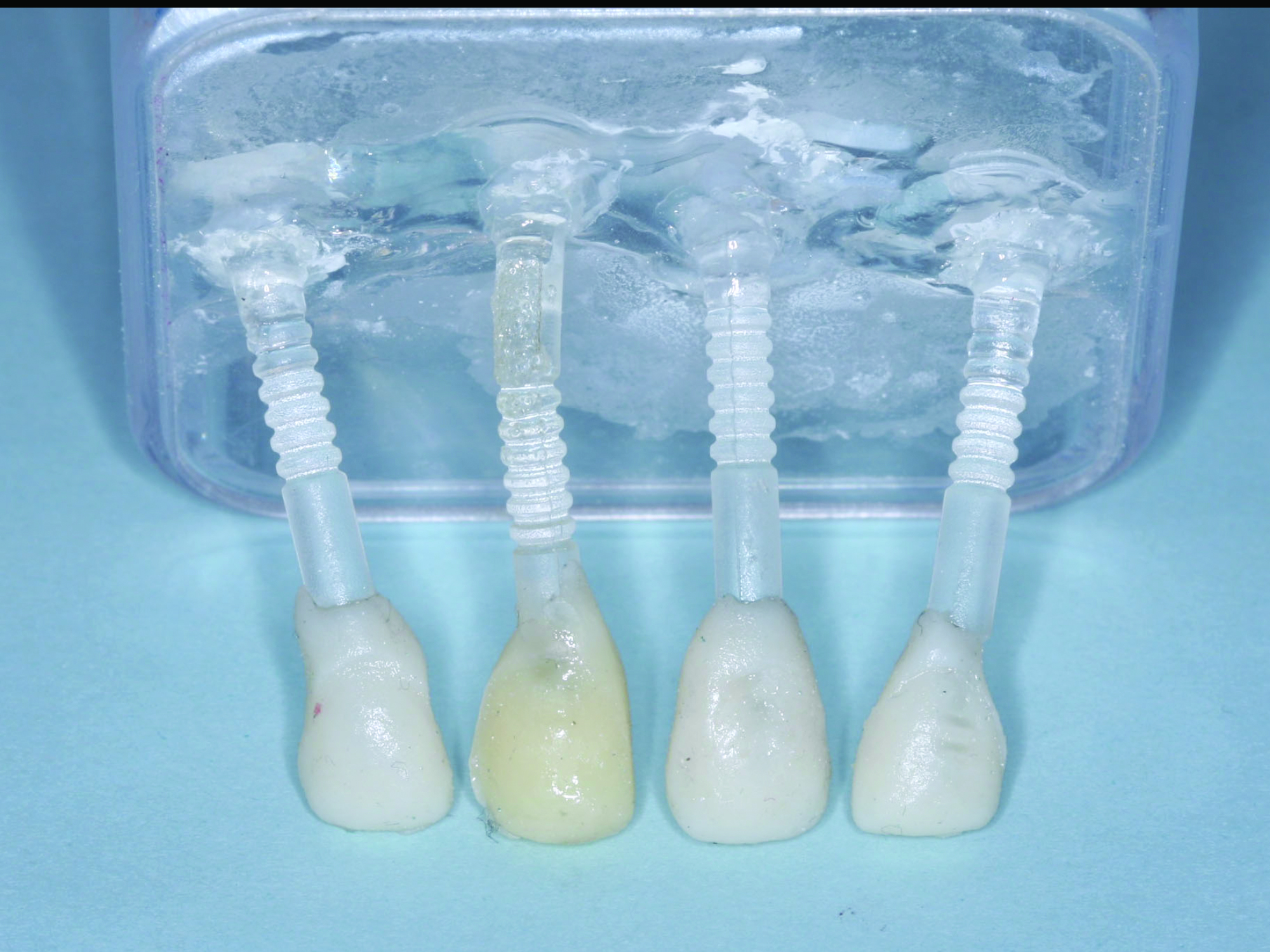

To eliminate the need for guesswork, a helpful practice is to create stump shades that mimic the color that needs to be masked (Figure 3). With the stump shades created, the technician can correctly test the material and thickness until the desired result is achieved.

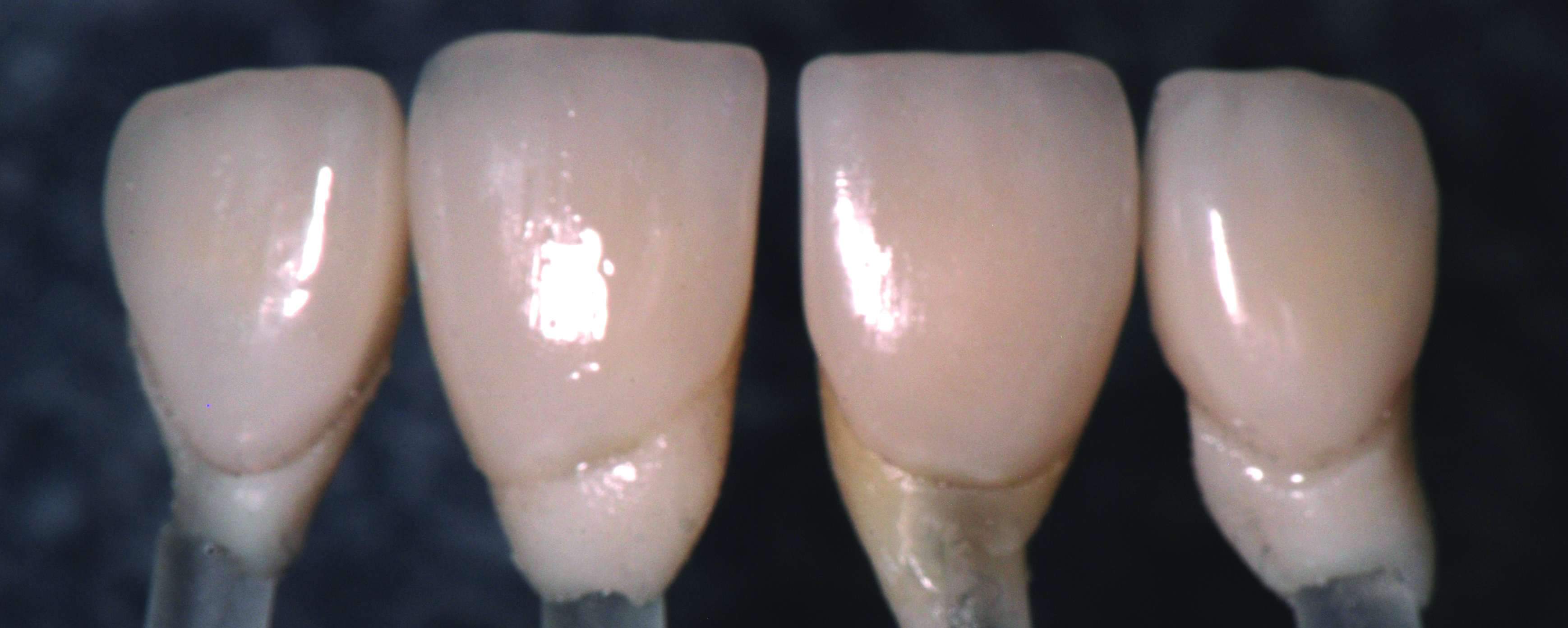

In this case, the IPS e.max Press cores (0.3 mm) can be seen on the stumps (Figure 4). There was little need for reduction to achieve the necessary esthetics. With slight internal staining on the stumps, the technician was able to correct any minor differences and add some effects at the same time.

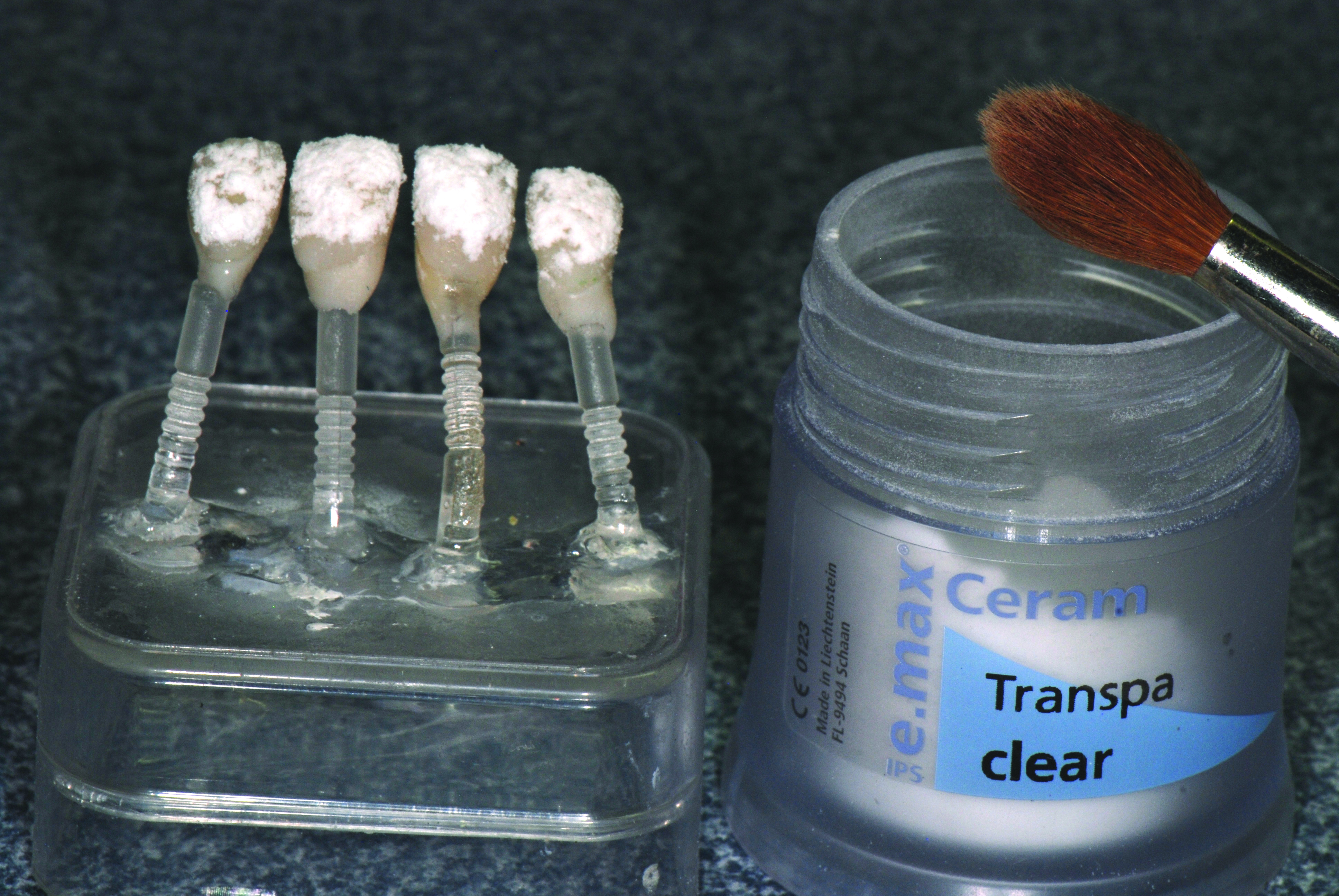

While the stain is still wet, it can be helpful to “dust” the crowns with an incisal effect (Figure 5). This method has been employed for years, and it derives more character from the effects, as well as great adhesion from the porcelain bake. In this case, the technician used the Transpa Clear from the IPS e.max Ceram porcelain kit (Ivoclar Vivadent). The result was a perfect substructure for the porcelain (Figure 6).

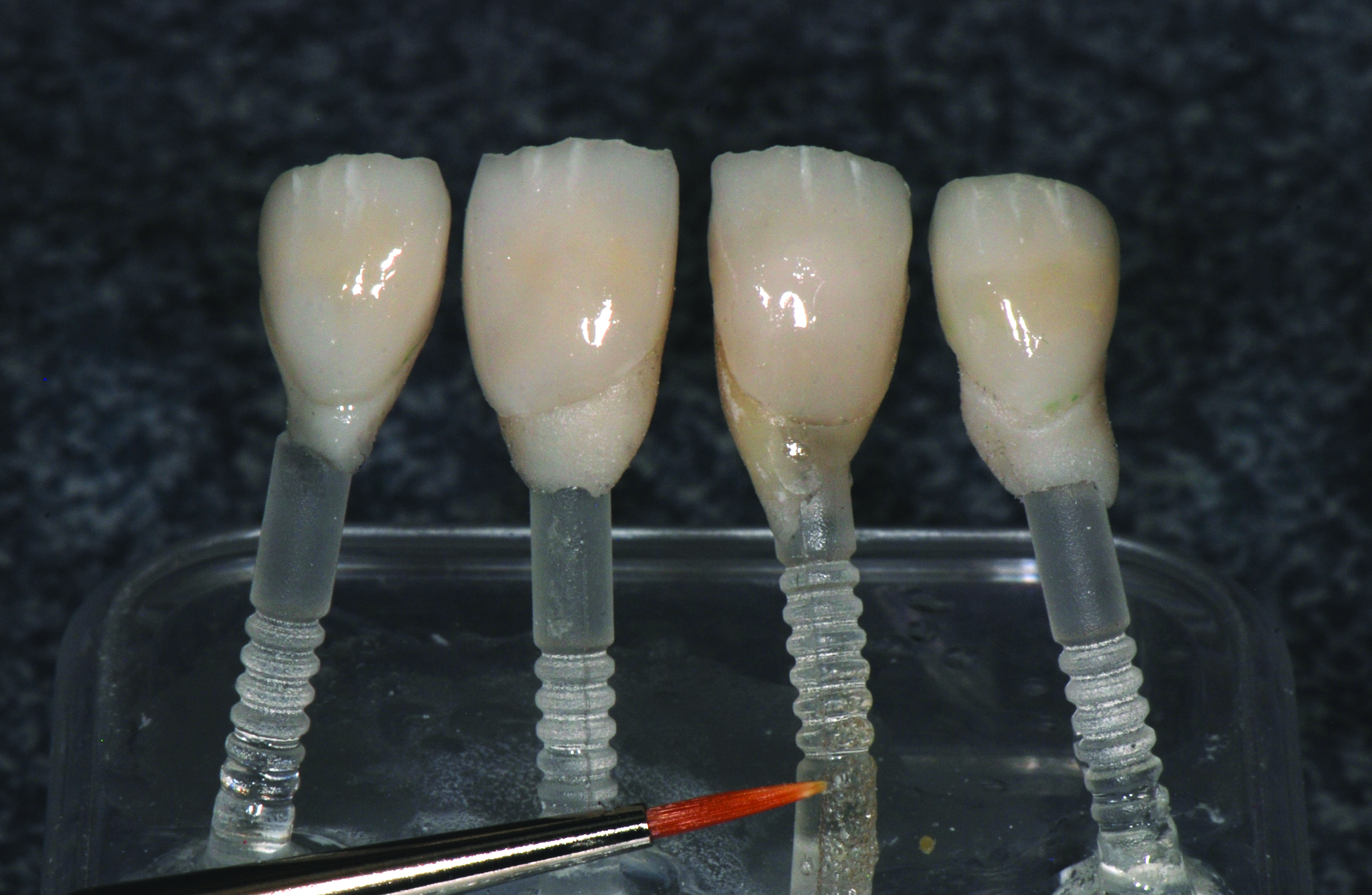

An overall thickness from 0.4 mm to 0.6 mm leaves very little room for porcelain. However, in this case, with IPS e.max MT, the color was masked on tooth No. 8 while remaining very esthetic, so the need for porcelain was far less. The fired crowns featured a minimal (0.3 mm) layer of porcelain (Figure 7).
Conclusion
The technician was able to mask an underlying stump color without adding bulk and still offer a natural level of esthetics (Figure 8 and Figure 9).
